Furnace Installation and Replacement Planned Around Your Home and Existing HVAC System
A furnace replacement estimate should identify the exact furnace, capacity basis, venting, gas and electrical work, duct corrections, permit responsibility, and startup checks.
MaksBuilder checks the furnace location, return-air path, duct transitions, gas shutoff, venting, controls, service clearance, and compatibility with any indoor coil and AC equipment that will remain.
If a formal Manual J load calculation is included, it is stated in the estimate.
Orange County is within South Coast AQMD jurisdiction. Rule 1111 generally applies to natural-gas-fired fan-type central furnaces below 175,000 BTU per hour input and qualifying combination units below 65,000 BTU per hour cooling capacity. For covered equipment, verify the exact model’s certification and applicable NOx limit.

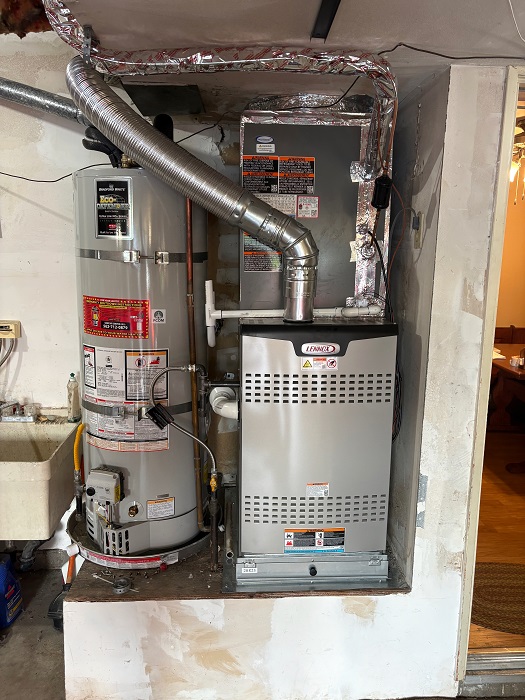

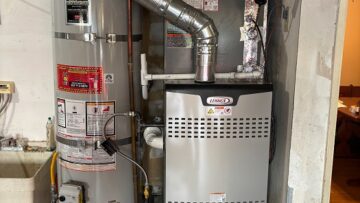

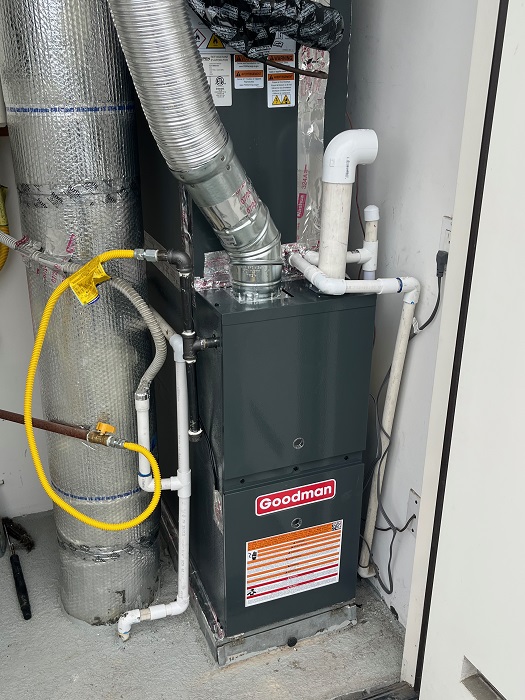

Examples of Furnace Equipment and Installation Conditions
Furnace layouts vary considerably. Cabinet position, venting type, condensate drainage, gas-line access, nearby equipment, and available service clearance can all change the required scope.
When Repair Still Makes Sense
Repair still makes sense when the fault is isolated, parts are available, the furnace is otherwise serviceable, and no safety, venting, gas, control, or airflow defect remains unresolved.
Conditions that support repair
Repair is easier to justify when diagnosis identifies a specific failed component, the heat exchanger and cabinet show no replacement-level defect, venting remains suitable, and the blower can support required heating and cooling airflow.
What the diagnosis needs to explain
The recommendation should identify the failed part, supporting evidence, proposed repair, and required follow-up testing. Furnace age alone does not justify replacement.
Reconsider repair if it addresses only the symptom while leaving a confirmed combustion, venting, gas-supply, heat-exchanger, control, or airflow defect.
For diagnosis of an existing unit, review Furnace Repair.
When Replacement Makes Sense
Replacement becomes more reasonable when a safety-critical defect cannot be corrected properly, key parts are unavailable, failures recur, or the existing furnace cannot work correctly with the required venting, controls, duct capacity, or connected cooling equipment.
Technical reasons
Relevant factors include confirmed heat-exchanger failure, extensive corrosion, recurring ignition or limit problems, obsolete controls, unsuitable venting, inadequate access, or an incompatible cabinet/blower arrangement.
Decision information
Compare repair cost and scope with replacement cost, required permit or compliance work, known duct or vent corrections, equipment compatibility, warranty terms, and remaining risks.
Replacement should follow a documented diagnosis. Age or a newer efficiency rating alone is not enough reason to replace an operating furnace.
Furnace-Only Replacement
Replacing only the furnace can be appropriate when the outdoor air conditioner and indoor coil remain serviceable and the new furnace can support the retained cooling system’s airflow, cabinet arrangement, controls, and static-pressure conditions. Physical fit alone is not enough; manufacturer rating data and the required equipment combination also need to be checked.
Compatibility review
Check the indoor-coil model, dimensions and condition; cabinet fit; supply and return transitions; filter arrangement; required cooling airflow; thermostat and low-voltage controls; condensate management; and service access. Where rated-system verification applies, confirm the retained outdoor unit, indoor coil, and furnace against the applicable manufacturer or AHRI rating data.
Scope limits
A furnace-only estimate should identify which cooling components remain, any transition or drain work, the intended cooling-airflow setup, and existing components or conditions that are outside the new furnace warranty.
Furnace and AC Replacement
Replacing the furnace and AC together can make sense when both systems have condition concerns, the indoor coil and outdoor unit are no longer suitable together, or the project requires coordinated cabinet, refrigerant, control, electrical, and duct changes.
One matched installation scope
A combined project can coordinate the furnace, evaporator coil, outdoor unit, blower setup, thermostat, refrigerant piping, drainage, electrical work, permits, and commissioning.
Not automatically required
Replacing a furnace does not automatically require a new AC. The decision depends on condition, compatibility, airflow, available equipment combinations, and the limits of retaining the existing cooling system.
For a combined heating and cooling project, review AC Installation and Replacement.
Furnace Versus Heat Pump
Furnace replacement is also a point to compare gas heat with an all-electric heat pump or dual-fuel system. The right choice depends on electrical capacity, ducts, comfort goals, equipment design, and local utility rates.
Gas-furnace path
For gas heat, check gas service, venting, combustion air, low-NOx model availability, duct capacity, controls, and the connected AC system.
Heat-pump path
For a heat pump, check loads, electrical capacity, outdoor-unit location, sound and clearance limits, duct airflow, defrost operation, controls, and any auxiliary or dual-fuel heat.
Compare equipment, installation changes, energy source, backup heat where applicable, permit scope, and operating characteristics. Utility-cost estimates should use the customer’s rates and the selected equipment.
For an electric or dual-fuel alternative, review Heat Pump Installation.
Low-NOx Model Selection
South Coast AQMD Rule 1111 regulates specified natural-gas-fired fan-type central furnaces. Covered equipment must meet the requirements that apply to its category and model.
Table 1 lists a 14-nanograms-per-joule NOx limit for the principal condensing, non-condensing, weatherized, and mobile-home furnace categories after the applicable compliance dates. Verify the exact model and Rule 1111 documentation rather than relying on marketing terms such as “ultra-low NOx.”
Confirm the exact model
Record the full model number and the documentation used to confirm its Rule 1111 status.
Do not rely on out-of-area availability
Equipment sold outside the South Coast AQMD area is not automatically suitable for Orange County. Confirm the exact model before ordering.
Keep the equipment documentation
Handover should include installed-model information, applicable product and permit records, and warranty-registration information.
Match the model to the installation
Emissions compliance does not replace correct sizing, venting, combustion air, duct capacity, service clearance, or manufacturer installation requirements.
Official reference: South Coast AQMD Rule 1111, amended January 9, 2026. South Coast AQMD explains its equipment-certification program at Certified and Approved Equipment.
Venting, Gas and Airflow Requirements
Furnace installation involves a fuel supply, ignition system, heat exchanger, blower, safety controls, and an approved method of removing combustion products. The furnace must also receive enough return air and move heated air through the duct system without exceeding the manufacturer’s permitted temperature-rise range.
Carbon monoxide alarms provide an important warning if carbon monoxide is detected, but they do not correct improper combustion, damaged equipment, venting defects, or insufficient combustion air. Place alarms according to applicable requirements and the manufacturer’s instructions.
Installation points to verify
What a Complete Estimate Defines Before Work Begins
Before work begins, the estimate should identify the equipment, capacity basis, required corrections, permit responsibility, and Energy Code documentation.
Capacity-selection method
Capacity selection considers available load data, home characteristics, comfort history, duct capacity, and return-air conditions. A formal Manual J calculation is identified when included.
Duct and return-air conditions
The estimate notes visible restrictions, damaged transitions, filter problems, and return-air limitations that could affect operation.
Permit and compliance responsibility
In California, HVAC equipment replacement or alteration requires a local permit. Depending on scope, registered compliance documents and Energy Code Compliance (ECC) field verification or diagnostic testing may also apply.
Included and excluded work
Included gas, vent, condensate, electrical, thermostat, duct, access, disposal, and finish work should be stated together with exclusions.
California Energy Code reference: 2025 Single-Family Heating, Ventilation, and Air Conditioning. Energy Code forms and ECC verification requirements depend on project scope and code cycle.
Heating Stages, Blower Type, AFUE and Venting Configuration
Heating stages, blower type, AFUE, and venting describe different furnace characteristics and are not interchangeable terms. AFUE (Annual Fuel Utilization Efficiency) is the furnace’s seasonal fuel-use efficiency rating; it does not describe blower type, airflow quality, burner staging, or Rule 1111 NOx compliance.
Single-stage gas heat
The burner operates at one heating output when there is a call for heat. This can suit straightforward replacements when the capacity and duct system are properly matched.
Two-stage or modulating gas heat
These furnaces can operate at more than one heat output. Stage operation depends on the furnace controls, thermostat configuration, setup, and actual heating demand.
Multi-speed or variable-speed blower
Blower type describes air movement rather than burner output. A variable-speed blower can support different airflow settings, but it does not automatically mean the gas heat is modulating.
Condensing furnace
A condensing furnace uses a secondary heat exchanger and produces liquid condensate. It requires an approved condensate drain and the venting materials and routing specified for the model.
Direct-vent or sealed-combustion configuration
A direct-vent configuration uses a combustion-air intake and exhaust arrangement approved for the listed furnace. It is a venting configuration and cannot be inferred from an efficiency percentage alone.
Non-condensing furnace
A non-condensing furnace uses a different venting approach and does not create the same condensate stream. Existing vent conditions still require review before replacement.
Furnace Replacement Process
Installation should follow the defined scope and finish with documented operating checks.
Site and system review
Confirm access, return-air and duct transitions, venting, gas and electrical connections, controls, drainage, and nearby appliances.
Written equipment and work scope
Confirm the exact furnace, capacity basis, required corrections, and permit or compliance work.
Removal and installation
Remove the old furnace and complete the agreed connections, transitions, controls, drainage, venting, and supports.
Commissioning and handover
Verify operation against the rating data and manufacturer instructions, then record required readings.
Startup checks can include gas-joint leak testing, required gas-pressure verification, ignition sequence, supply and return temperatures, temperature rise, blower and thermostat setup, condensate drainage for condensing equipment, and draft or spillage checks where applicable.
- The startup record identifies the checks and readings completed.
- Static-pressure testing or combustion analysis is documented when required by the equipment or project scope.
- Handover includes model information, operating guidance, filter details, and applicable documentation.
Furnace Installation Service Areas in Orange County
MaksBuilder provides furnace installation and replacement planning for homes in Lake Forest and nearby South Orange County communities.
- Lake Forest
- Foothill Ranch
- Irvine
- Mission Viejo
- Laguna Hills
- Aliso Viejo
- Rancho Santa Margarita
- Laguna Woods
Related HVAC Services
Furnace replacement can affect the indoor cooling coil, blower requirements, thermostat controls, ductwork, and future maintenance plan. Reviewing the connected system helps define the correct scope before equipment is ordered.
Furnace Installation FAQ
How can I verify that a furnace meets Rule 1111 requirements?
Ask for the complete model number and the manufacturer or South Coast AQMD documentation used to confirm compliance. Verification applies to the exact furnace being installed, not only to the brand or product family.
How is the correct furnace capacity determined?
Capacity selection uses the home’s heating needs, layout, insulation, windows, existing performance, duct capacity, return-air paths, and available load information. If a formal Manual J calculation is included, the proposal names it explicitly.
Are condensing and direct-vent furnaces the same thing?
No. “Condensing” describes how the furnace extracts heat and produces condensate. “Direct vent” or “sealed combustion” describes an approved combustion-air and exhaust configuration. The exact arrangement depends on the listed equipment and manufacturer instructions.
Which permits and compliance documents apply to furnace replacement?
Requirements depend on the city, work scope, equipment change, and applicable Energy Code cycle. The written proposal identifies permit responsibility, inspections, registered documents, and any field verification or diagnostic testing required for the project.
License status can be verified by entering number 1095368 at CSLB Check a License.
Request a Furnace Replacement Estimate
Request a written estimate that clearly defines the selected equipment, capacity approach, installation scope, permit responsibility, documentation, and commissioning work before approval.
